On Saturday, May 3rd, Warren Newhauser and Brian LaKemper came out and worked on X-5000. Brian wrote the following report with comments from Warren:

The day started with installing the four 8V lead acid golf car batteries for the season while the car was on Station Track 2. Golf car batteries provide 32VDC for the cars electrical system.

Then a switch move to get the X-5000 and the Railway Post Office car out of the station so that the Coach Train could use station track two.

After being switched to Yard 3, the switch crew was kind enough to assist Brian testing the cars decelostats, which perform the anti-lock feature to the car’s Budd disc brakes. All three were tested and worked as intended; releasing the brakes if the car’s wheels are not turning when the internal mechanism is turning. Brian independently researched how to test decelostats from the original Westinghouse Air Brake “3-AP” Decelostat Mechanical-Pneumatic Wheel Slip Control for Passenger cars manual.

Brian LaKemer photo by Warren Newhauser

Decelostat illustration image from Brian LaKemer

Decelostat pamphlet image from Brian LaKemer

After the switch crew left to run the Coach Train, Warren got out his air compressor and Brian connected the Air (Communicating) Signal pipe to the compressor (After removing a lot of accumulated debris) to test the system. After figuring out the car’s cut-out valves, the system was charged and tested. The valves are the opposite of a normal valve, perpendicular to the pipe is the open position. Thanks to Roger Kramer, we also acquired a set of three air signal hoses, one of which is now hanging on the car. The second one will be as a guide so the gladhand on the third hose can be repaired, then the second hose will be hung. Thanks to Brian Patterson for taking time to sandblast the rust and crud off of the threads. Laddie Vitek indicated we could hook up and test the Air Signal equipment on E-9 37A with the Dynamometer this season.

On his first volunteer day on the Dynamometer, Brian has researched and figured out the Air Signal and decelostat systems!

Meanwhile, Warren traced piping runs to figure out how to replace a thoroughly rusted pipe.

Rusty pipe to be replaced image from Brian LaKemer

Also, a light socket was attached to the wiring in the sleeper section that we use for tool storage, so that we now have light to see our tools. We have also had trouble determining the type of fluid that is in use in the hydraulic dynamometer unit. Initial research indicated possibly mineral oil would have been used c. 1930 due to rubber gaskets indicated on the blueprints, but cleaning out a front closet revealed two gallon cans of automotive brake fluid!

Brake fluid found in the X-5000 - image from Brian LaKemer

After the last train of the day, the switch crew returned, and after consulting with Jamie Kolanowski; the switch crew was kind enough to stay a little late and switch the dynamometer and the RPO so that the Dynamometer was on track 32 next to the scaffolding for safer access to the roof to continue work sealing the roof.

During the switch move, Warren also filled the kitchen’s water tanks from the well by Yard 2 for use later this summer. In doing so, a few leaks were noted in piping leading to the various kitchen appliances that will have to be repaired. The leaks were isolated by turning off a series of valves in the kitchen.

Special thanks to Engineer Jim West, Conductor Michael McCraren, and trainman Ray Erickson for going the extra mile to assist fellow volunteers. Thanks also to Jamie Kolanowski for letting the extra switching take place, and Roger Kramer and Brian Patterson for taking time to help out.

Dynamometer after second switch move - image from Brian LaKemer

Sunday, May 4th, was breezy and cool.

The day started with Kevin Kriebs continuing to remove decal adhesive residue from the exterior of the 1st Exhibit Car.

Kevin Kriebs removing adhesive on the 1st Exhibit Car - image by Michael McCraren

Ray Mormann and Michael Baksic put parts back into the Loch Sloy.

Michael McCraren and Shelly Vanderschaegen cleaned the AT&SF Lounge Car in Barn 3. It took all morning.

Jon Habegger put up the last two pictures in the Birmingham diner he had framed.

Lunch was in the Brimingham as usual. Vistiors included Sam Polonetzky from Operations and Jeff Calandine from the Steam Department. All the regulars were there except Mark Gellman who is still with his recovering mother.

Lunch in the Birmingham with Shelly Vanderschaegen and Michael Baksic - image by Michael McCraren

Lunch with Ray Mormann and Kevin Kriebs - image by Michael McCraren

Lunch guest Jeff Calandine - image by Michael McCraren

Lunch guest Sam Polonetzky - image by Michael McCraren

Jon Habegger at lunch in the Birmingham - image by Michael McCraren

After lunch work continued in the Loch Sloy. Kevin returned to adhesive removal. Shelly and Jon went to the 1st Exhibit Car and determined where to place pictures and discussed a possible latern display area. Then as Jon worked on displays in the 1st Exhibit Car, Shelly finished vacuuming the Santa Fe Lounge Car and sends a big thank you to Michael McCraren for his help.

Shelly Vanderschaegen vacuuming the ATSF Lounge Car - image by Michael McCraren

After testing the brakes and making minor repair on the cars. The coach train made it's debut on Saturday. Below is a picture of the train on Sunday with Frank Nero as engineer and Mike Blackwell as conductor.

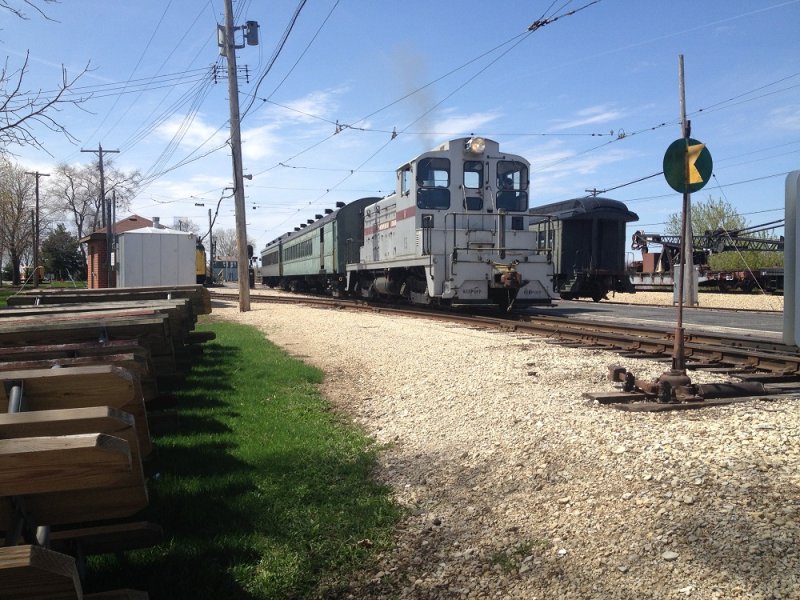

The coach train on Sunday - image by Michael McCraren

Jon Habegger captured some images of the 1st Exhibit Car interior which is ready for visitors. The sheets hanging on the wall are of the departures and arrivals of intercity trains at the six Chicago stations at the end of October 1955. This is the date that we have determined the arrival/departure board dates back to. Jon has added these details to expand the station display.

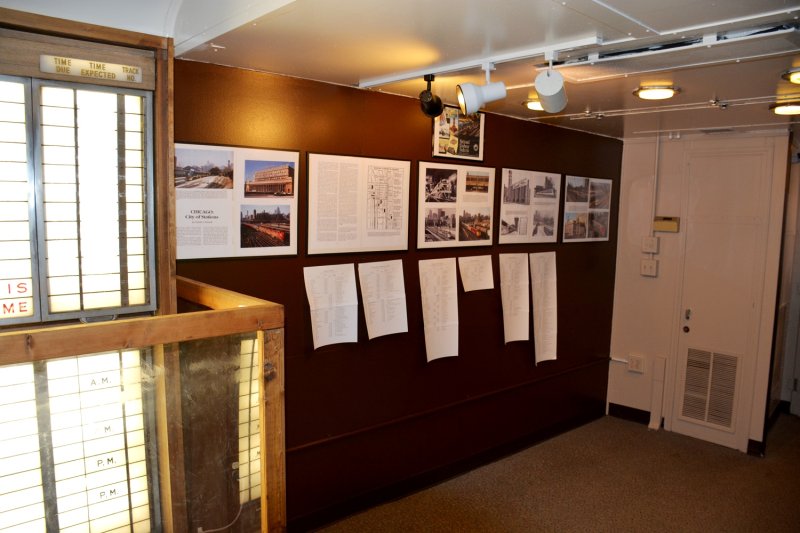

1st Exhibit Car Station Article - image by Jon Habegger

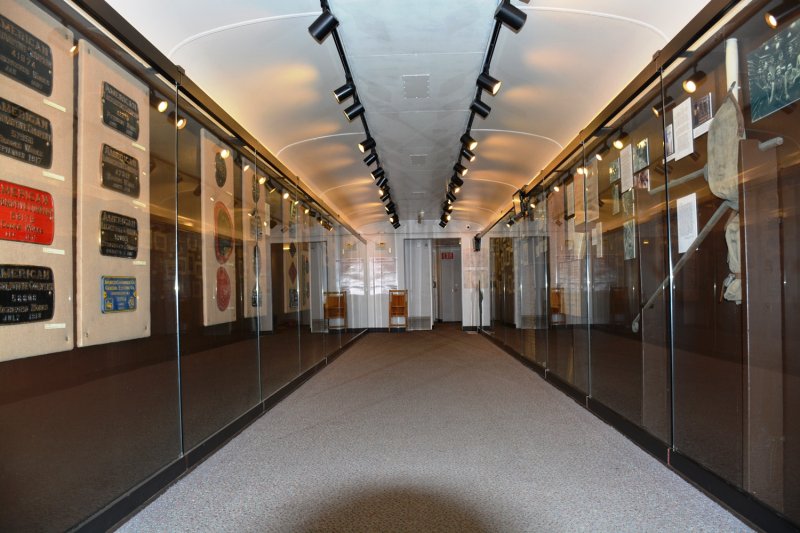

Looking towards the rear of the 1st Exhibit Car - image by Jon Habegger

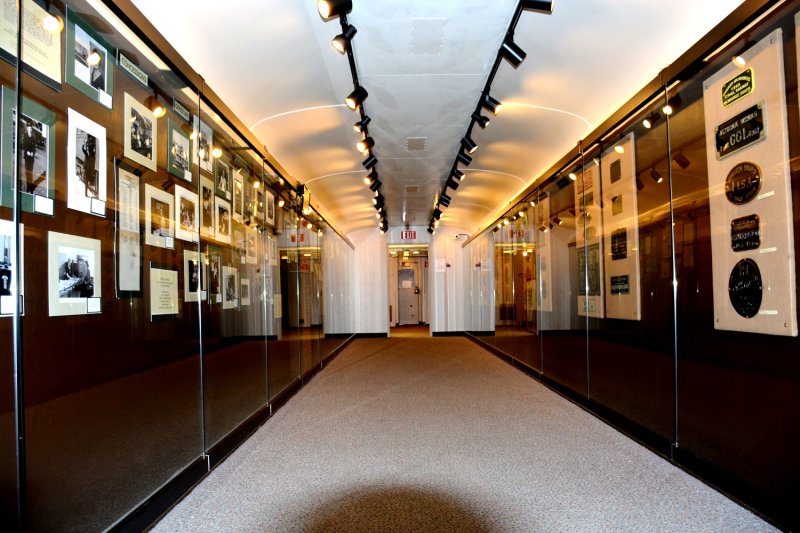

Looking towards the front of the 1st Exhibit Car - image by Jon Habegger

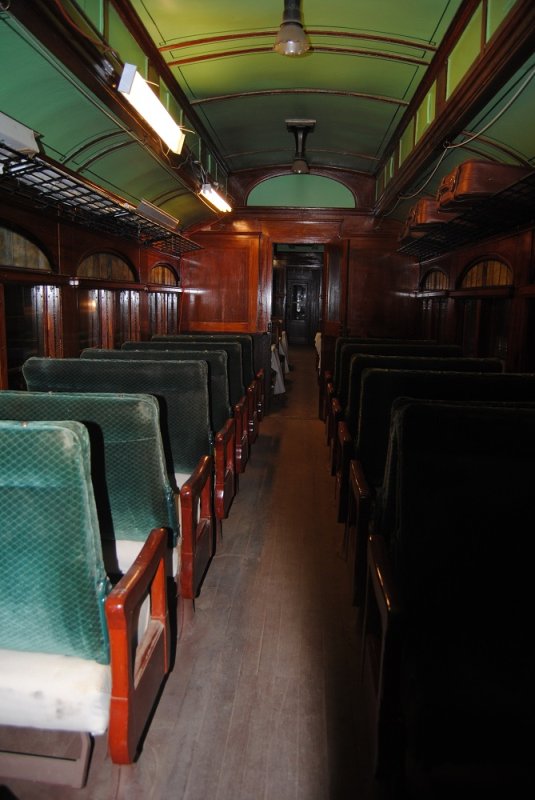

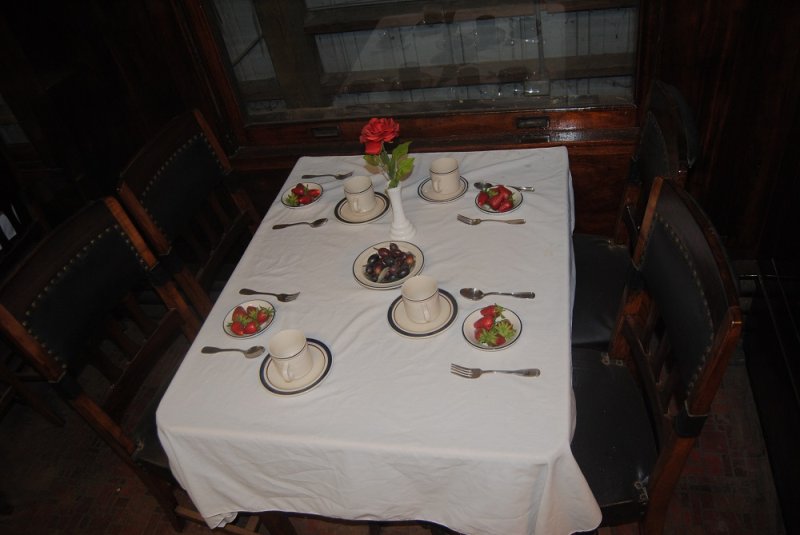

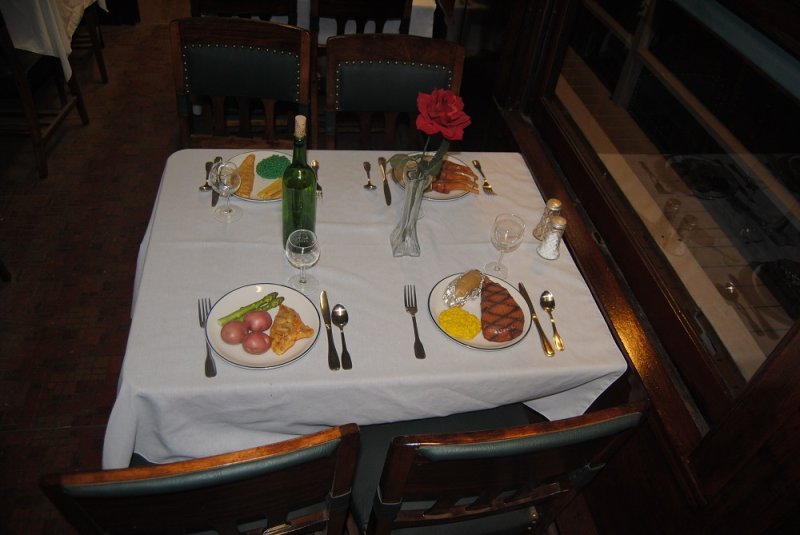

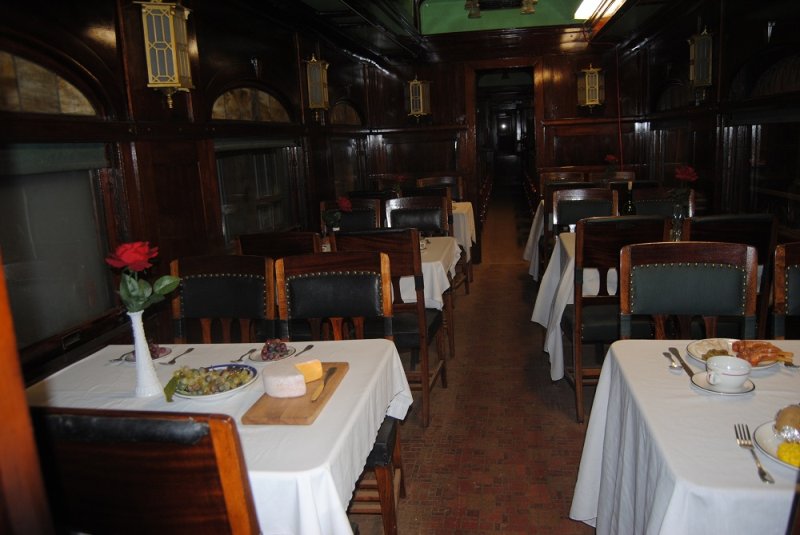

Shelly took the time to capture interior images from the Boston and Maine 1094 dining car which is Jack Biesterfeld's ongoing project car. It iw really looking good!

New "

Refreshing "

B&

An old furnace to be removed from the B&

A view of the B&

The Passenger Car Department sends a big 'Hello' to Bob Kutella - we miss your jokes and hope to see you soon!
